TYPES OF PRODUCTS

1 Direct Installation – AW/1

The acoustic plaster is sprayed directly onto a primed plasterboard or concrete substrate to a total thickness of 3mm.

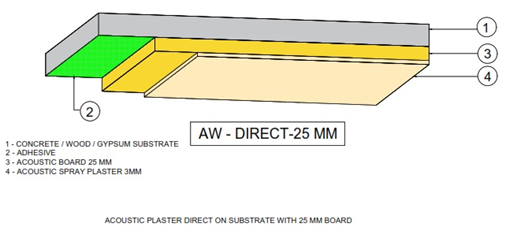

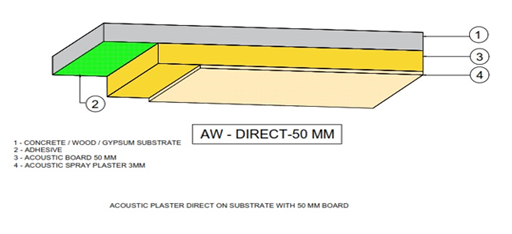

2 Acoustic Plaster direct on acoustic board – AW/2

The acoustic board is installed directly onto a plasterboard, concrete or timber substrate with either approved adhesive or mechanically fixed with special washers.

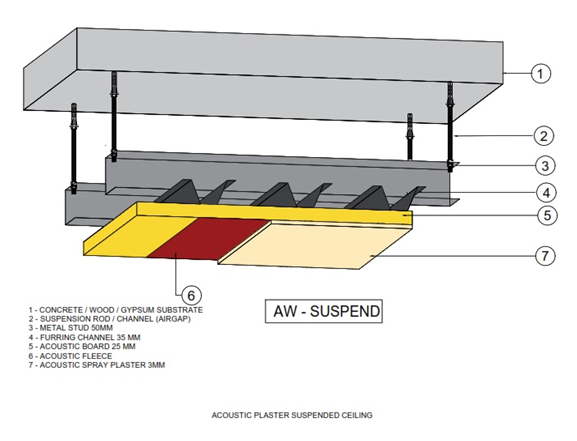

3 Direct to Grid – AW/3

The acoustic board is installed directly to a MF metal drywall gri d system 300 mm c/c or similar with the special washers.

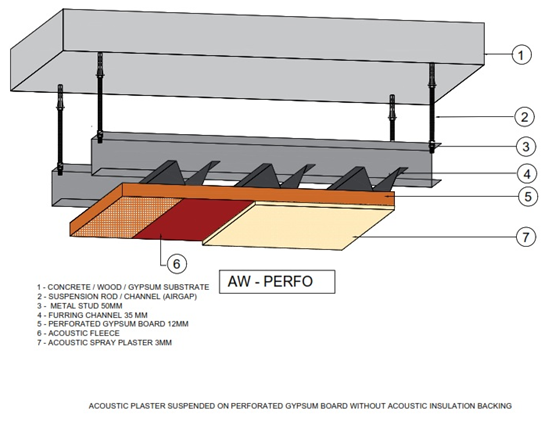

4 On perforated Gypsum Board without acoustic board backing – AW/4

The spray plaster is done on a perforated gypsum board with minimu m 17% perforation open area which is installed on metal frame works of 300mm c/c .

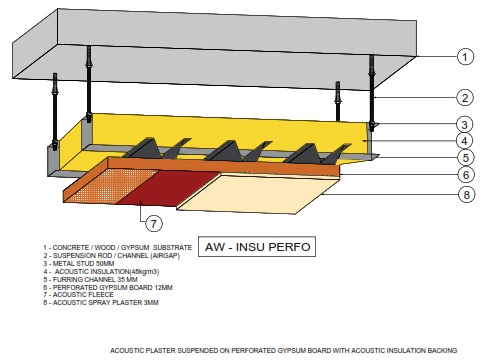

5 On perforated Gypsum Board with acoustic board backing – AW/5

The spray plaster is done on a perforated gypsum board with minimum 17% perfo ration open area which is installed on metal frame works of 300mm c/c with acoustic insualation board 25mm thick in the frame work behind gypsum board for better performance .

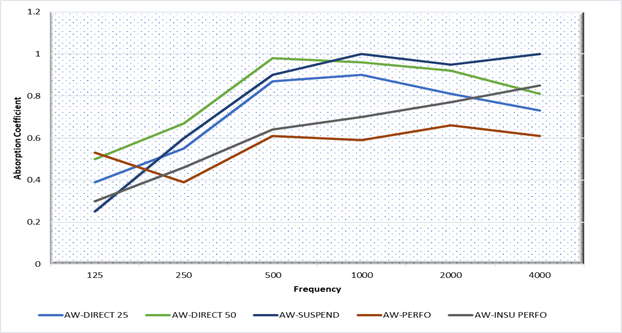

Acoustic Performance

Product Type	125Hz	250Hz	500Hz	1kHz	2kHz	4kHz	aw	NRC
AW-DIRECT 25	0,39	0,55	0,87	0,90	0,81	0,73	0,75	0,80
AW-DIRECT 50	0,50	0,67	0,98	0,96	0,92	0,81	0,90	0,90
AW-SUSPEND	0,25	0,60	0,90	1,00	0,95	1,00	0,95	0,85
AW-PERFO	0,53	0,39	0,61	0,59	0,66	0,61	0,70	0,60
AW- INSU PERFO	0,30	0,46	0,64	0,70	0,77	0,85	0,80	0,75

NRC- Noise reduction coefficient (ASTM C423-01)

Alpha w- BS EN ISO 11654: 1997

Suitable substrates:

Regular gypsum wallboard, MF metal drywall grid system 400 mm c/c or similar, concrete, previously painted substrates, timber/steel frame

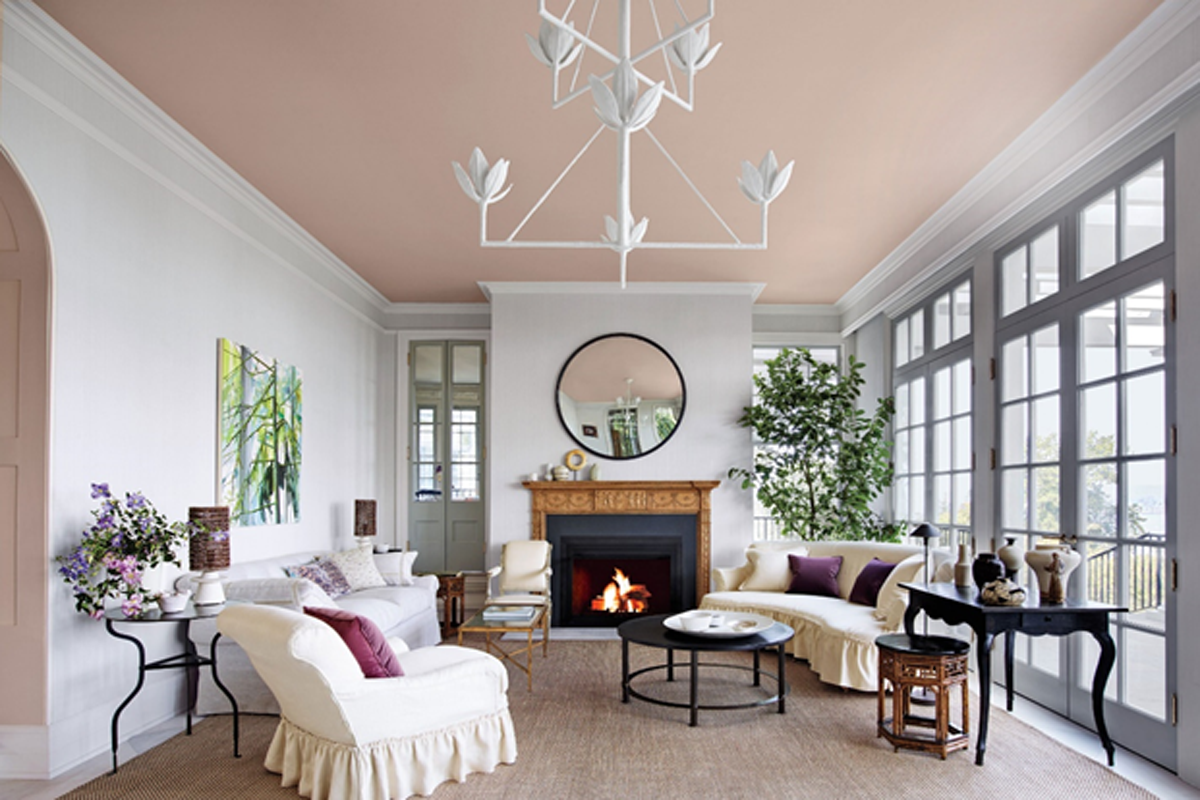

Color Options

Acoustic plaster finish can be applied on virtually any surface including straight and curved walls, dramatic angles and arching domes offering a more flexible, discreet alternative to traditional acoustic solutions, such as suspended ceilings. Apart from the standard white color RAL 9016, ACOWHITE® can be done with various RAL colors as required for the architect’s design requirements.
